Project Euler 363

题目

Bézier Curves

A cubic Bézier curve is defined by four points: $P_0,P_1,P_2,$ and $P_3$.

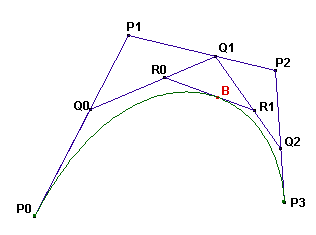

The curve is constructed as follows:

On the segments $P_0{P}_1$, $P_1{P}_2$, and $P_2{P}_3$ the points $Q_0,Q_1,$ and $Q_2$ are drawn such that ${\displaystyle \frac{P_0{Q}_0}{P_0{P}_1}}={\displaystyle \frac{P_1{Q}_1}{P_1{P}_2}}={\displaystyle \frac{P_2{Q}_2}{P_2{P}_3}}=t$, with $t$ in $[0,1]$.

On the segments $Q_0{Q}_1$ and $Q_1{Q}_2$ the points $R_0$ and $R_1$ are drawn such that

${\displaystyle \frac{Q_0{R}_0}{Q_0{Q}_1}}={\displaystyle \frac{Q_1{R}_1}{Q_1{Q}_2}}=t$ for the same value of $t$.

On the segment $R_0{R}_1$ the point $B$ is drawn such that ${\displaystyle \frac{R_{0}B}{R_0{R}_1}}=t$ for the same value of $t$.

The Bézier curve defined by the points $P_0,P_1,P_2,P_3$ is the locus of $B$ as $Q_0$ takes all possible positions on the segment $P_0{P}_1$. (Please note that for all points the value of $t$ is the same.)

From the construction it is clear that the Bézier curve will be tangent to the segments $P_0{P}_1$ in $P_0$ and $P_2{P}_3$ in $P_3$.

A cubic Bézier curve with $P_0=(1,0),P_1=(1,v),P_2=(v,1),$ and $P_3=(0,1)$ is used to approximate a quarter circle.

The value $v>0$ is chosen such that the area enclosed by the lines $O{P}_0,O{P}_3$ and the curve is equal to ${\displaystyle \frac{\pi }{4}}$ (the area of the quarter circle).

By how many percent does the length of the curve differ from the length of the quarter circle?

That is, if $L$ is the length of the curve, calculate $100\times {\displaystyle \frac{L-\frac{\pi }{2}}{\frac{\pi }{2}}}$

Give your answer rounded to $10$ digits behind the decimal point.

解决方案

这个页面给出了这条三次贝塞尔曲线的参数方程：

$${\displaystyle \mathbf{B}(t)={\mathbf{P}}_0(1-t{)}^3+3{\mathbf{P}}_{1}t(1-t{)}^2+3{\mathbf{P}}_2{t}^2(1-t)+{\mathbf{P}}_3{t}^3,t\in [0,1]}$$

那么化简后，得到关于 $x,y$ 的参数方程：

$$\begin{array}{rl}x(t)& =(1-t{)}^3+3t(1-t{)}^2+3t^2(1-t)v\\ y(t)& =3t(1-t{)}^{2}v+3t^2(1-t)+t^3\end{array}$$

第一个问题：如何求贝塞尔曲线 $B$ 和线段 $C:P_{3}O,D:O{P}_0)$ 共同围绕而成的封闭曲线的面积？

使用补线法进行计算，可以列出公式为：

$${\displaystyle \frac{\pi }{4}}=S={\displaystyle \frac{1}{2}}{\int }_{B+C+D}xdy-ydx$$

注意线段 $B$ 和线段 $C$ 的积分值都为 $0$，那么只需要计算 ${\displaystyle \frac{1}{2}}{\int }_{B}xdy-ydx$ 即可。

$${\displaystyle \frac{1}{2}}(1+{\displaystyle \frac{6v}{5}}-{\displaystyle \frac{3v^2}{10}})={\displaystyle \frac{\pi }{4}}$$

解这个一元二次方程，得到 $v=2\pm \sqrt{{\displaystyle \frac{1}{3}}(22-5\pi )}$。

由于按照题目的需要，它是一个 ${\displaystyle \frac{1}{4}}$ 圆的近似，因此取 $v=2-\sqrt{{\displaystyle \frac{1}{3}}(22-5\pi )}$

第二个问题：如何求曲线的长度？

$$d_{P_0{P}_3}={\int }_0^1\sqrt{x^{\prime 2}(t)+y^{\prime 2}(t)}dt$$

通过 Mathematica 直接计算出具体值即可。

代码

x[t_] = (1 - t)^3 + 3 t (1 - t)^2 + 3 t^2 (1 - t) v
y[t_] = 3 t (1 - t)^2 v + 3 t^2 (1 - t) + t^3
sol = First[Solve[1/2 (Integrate[x[t] y'[t] - y[t] x'[t], {t, 0, 1}]) == Pi/4, v]]
L = NIntegrate[Sqrt[x'[t]^2 + y'[t]^2 /. sol], {t, 0, 1}]
ans = 100*(L - Pi/2)/(Pi/2)
