Project Euler 220

题目

Heighway Dragon

Let \(\mathbf{D}_0\) be the two-letter string “Fa”. For \(n\ge1\), derive \(\mathbf{D}_n\) from \(\mathbf{D}_{n-1}\) by the string-rewriting rules:

“a” → “aRbFR”
“b” → “LFaLb”

Thus, \(\mathbf{D}_0\) = “Fa”, \(\mathbf{D}_1\) = “FaRbFR”, \(\mathbf{D}_2\) = “FaRbFRRLFaLbFR”, and so on.

These strings can be interpreted as instructions to a computer graphics program, with “F” meaning “draw forward one unit”, “L” meaning “turn left \(90\) degrees”, “R” meaning “turn right \(90\) degrees”, and “a” and “b” being ignored. The initial position of the computer cursor is \((0,0)\), pointing up towards \((0,1)\).

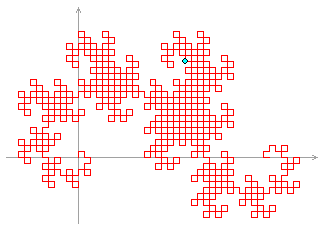

Then \(\mathbf{D}_n\) is an exotic drawing known as the Heighway Dragon of order \(n\). For example, \(\mathbf{D}_{10}\) is shown below; counting each “F” as one step, the highlighted spot at \((18,16)\) is the position reached after \(500\) steps.

What is the position of the cursor after \(10^{12}\) steps in \(D_{50}\) ?

Give your answer in the form \(x,y\) with no spaces.

解决方案

令\(N=10^{12}\)。并假设机器人第\(i\)步走到的点为\((x_i,y_i)\)。

令\(a_0=\varnothing,b_0=\varnothing\)，那么可以写出

\(\begin{aligned} a_n&\rightarrow a_{n-1}Rb_{n-1}FR\\ b_n&\rightarrow LFa_{n-1}Lb_{n-1}\\ D_n&\rightarrow Fa_n \end{aligned}\)

令\(D_n'\rightarrow b_{n-1}F\)，那么可以将\(a_n,b_n\)从这些规则中消去：

\(\begin{aligned} D_n&\rightarrow Fa_n\rightarrow Fa_{n-1}Rb_{n-1}FR\rightarrow D_{n-1}RD_{n-1}'R\\ D_n'&\rightarrow b_nF\rightarrow LFa_{n-1}Lb_{n-1}F\rightarrow LD_{n-1}LD_{n-1}'\\ \end{aligned}\)

最终这些规则可以写成：

\(\begin{aligned} D_0&\rightarrow F\\ D_0'&\rightarrow F\\ D_n&\rightarrow D_{n-1}RD_{n-1}'R\\ D_n'&\rightarrow LD_{n-1}LD_{n-1}'\\ \end{aligned}\)

可以发现，\(D_{n-1}\)是\(D_n\)的前缀，那么实际上可以将\(D\)可以看成是一个无限字符串。并且，如果走完\(D_n\)或者是\(D_n'\)中的所有步骤，那么就相当于已经行走了\(2^n\)步。

考虑动态规划的思想，从原点开始，如果运行完\(D_n\)或者是\(D_n'\)中所有的指令后，当前机器人所处的位置和旋转的角度，用一个三元组\((x,y,d)\)来表示。那么，就按照给定的规则，逐步递推到运行第\(N\)个\(F\)的地方。

另外，在该页面中查询到了这种龙形曲线的一些信息：在第\(m\)次迭代前，龙形曲线的最后一段端点在\((a_{m-1},b_{m-1})\)处。那么，将整个龙形曲线逆时针旋转\(90°\)，原点\((0,0)\)的位置将被旋转到\((a_m,b_m)\)，旋转前和旋转后的曲线合并在一起就是第\(n\)轮的迭代结果。另外，\((a_0,b_0)=(0,1)\)。并且，可以发现\((x_{2^m},y_{2^m})=(a_m.b_m)\)

这启发我们给出了寻找坐标点另一个更简单的算法：如果需要求第\(n\)次行走的结果，那么需要找到最小的整数\(t\)使得\(2^t\ge n\)，那么第\(n\)步的结果就相当于是将第\(2^t-n\)步的点\((x_{2^t-n},y_{2^t-n})\)绕\((x_{2^{t-1}},y_{2^{t-1}})\)点逆时针旋转\(90°\)得到。这相当于将问题转化成了两个子问题：找出点\((x_{2^{t-1}},y_{2^{t-1}})\)点\((x_{2^t-n},y_{2^t-n})\)的坐标。逐步递归即可得到最终答案。

代码

N = 10 ** 12


def f(now: tuple, *dir_list):
    x, y, d = now
    for dif in dir_list:
        if d == 0:
            x, y = x + dif[0], y + dif[1]
        elif d == 1:
            x, y = x - dif[1], y + dif[0]
        elif d == 2:
            x, y = x - dif[0], y - dif[1]
        else:
            x, y = x + dif[1], y - dif[0]
        d = (d + dif[2]) % 4
    return x, y, d


l = len(bin(N)) - 2
F, L, R = (0, 1, 0), (0, 0, 1), (0, 0, -1)
Da = [F]
Db = [F]
for i in range(1, l + 1):
    Da.append(f(Da[i - 1], R, Db[i - 1], R))
    Db.append(f(L, Da[i - 1], L, Db[i - 1]))
now = (0, 0, 0)
flag = 0
for i in range(l - 1, -1, -1):
    if flag == 0:
        if N >> i & 1:
            now = f(now, Da[i], R)
            flag = 1
        else:
            flag = 0
    else:
        now = f(now, L)
        if N >> i & 1:
            now = f(now, Da[i], L)
            flag = 1
        else:
            flag = 0
ans = ",".join(str(x) for x in now[:2])
print(ans)

N = 10 ** 12
mp = {0: (0, 0), 1: (0, 1)}


def cal(c, p):
    cx, cy = c
    px, py = p
    return cx - py + cy, cy + px - cx


def find(n):
    if n in mp.keys():
        return mp[n]
    pw = 1
    while pw < n:
        pw *= 2
    mp[n] = cal(find(pw // 2), find(pw - n))
    return mp[n]


ans = ",".join(str(x) for x in find(N))
print(ans)
